| Class Name | Picture Example | Notes | |
|---|---|---|---|
AOL Frame25 |
N/A |
The entire AOL window's class name is "AOL Frame25". Most of the windows that you are accostumed to dealing with are childs of this main window. |
|
_AOL_Modal |
 |
The _AOL_Modal is a specific type of window that shows up when AOL wants you to make a decision before continuing on with what you are doing. There are numerous example of this: the idle message(shown), the Mail andChat Preferences windows, and the "Your mail has been sent." window. |
|
_AOL_Splash |
 |

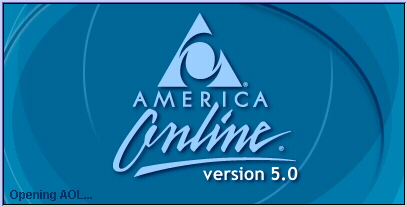

The only example I am aware of for _AOL_Splash is the initiating screen when first loading AOL4 or AOL5. |
|
MDIClient |
N/A | This window is the window in the back of AOL. It is basically the window that starts below the Keyword field and ends at the toolbar. |
|
AOL Toolbar |
 (Portion) |
The AOL Toolbar holds all of the buttons at the top of AOL. The toolbar contains the icons, navigate buttons, keyword field, and misc. buttons. |
|
AOL Child |
N/A | Simply put, every window in AOL that has a minimize, maximize, and a close button is an AOL Child. |
|
RICHCNTL |
 |
The RICHCNTL is any text box that you can type in with the ability of showing colors. Some examples are: the chat conversation box(shown), the IM conversation box, and the "Message" area on the "Write Mail" screen. |
|
_AOL_Edit |
 |
The _AOL_Edit is also a box you can type in but without the ability of showing colors. Some examples are: the "To" field of the "Send an Instant Message" window and the "Subject" area of the "Write Mail" window. |
|
_AOL_Checkbox |
 , |
The _AOL_Checkbox is any check box or option(ratio) button in AOL. You can see many examples of these by looking at your AOL preferences (My AOL | Preferences). |
|
_AOL_Icon |
 ,  |
An _AOL_Icon is any button in AOL. It will usually have a 3D-Image effect, meaning that it will have the appearance of moving down, when clicking on it with your mouse. |
|
_AOL_Glyph |
 |
The most famous of all _AOL_Glyphs is the one shown at the right which appears at the top right hand corner of AOL. |
|
_AOL_Static |
 |
Probably the most common window in AOL is the _AOL_Static. _AOL_Static is characterized by containing text, and not being able to edit that text. |
|
_AOL_Image |
 |
_AOL_Images are contain pictures, sometimes moving, sometimes not. Most banners are _AOL_Images |
|
_AOL_Listbox |
 |
_AOL_Listboxs either contains information that the user must choose from while viewing the rest of the items too or just displays information. |
|
_AOL_Combobox |
 |
_AOL_Comboboxes are like _AOL_Listboxs in that you can choose from an item in a list. However with combo boxes only the select item appears to the user. |
|
_AOL_Gauge |
 |
_AOL_Gauges show the progress of something. Usually file transfers. |
|
_AOL_TabControl |
 |
_AOL_TabControl is the set of tabs at the top of a screen where you choose from one. |
|
_AOL_TabPage |
 |
_AOL_TabPage is the enire window you view after clicking an _AOL_TabControl. Keep in mind. The _AOL_TabControl is the buttons at the top, the _AOL_TabPage is window that contains everything after clicking the _AOL_TabControl. |
|
Edit |
 |
Edit is not really an AOL window but more of a general window. The most common place in AOL is the Keyword field. |
|
#32768 |
 |
#32768 is the class name of message boxes and menus |
|
_AOL_AVI |
 |
When AVI files are played in AOL the window the movie plays in is the _AOL_AVI. |
|
JGAOLSNP |
N/A | An animated GIF. |
|
_AOL_Button |
 |
Just a regular button. Usually in message boxes and the like. |
|
_AOL_WWWView |
N/A | These windows are all windows dealing with web pages. _AOL_WWWView is the web window itself. |
|
_AOL_Connection_TCP |
N/A | All of these windows are top level windows just like AOL except _AOL_MMI. If you are using AOL most these are all open now. I'm not sure on the functions of all these are and I dont think they pose much use. |
|
